How It Works
Serving all of Texas—residential and commercial swimming pool owners. Unlike traditional solar pool heaters that require expensive roof-mounted panels, the STE4 uses the heat already trapped in your attic as a free energy source.

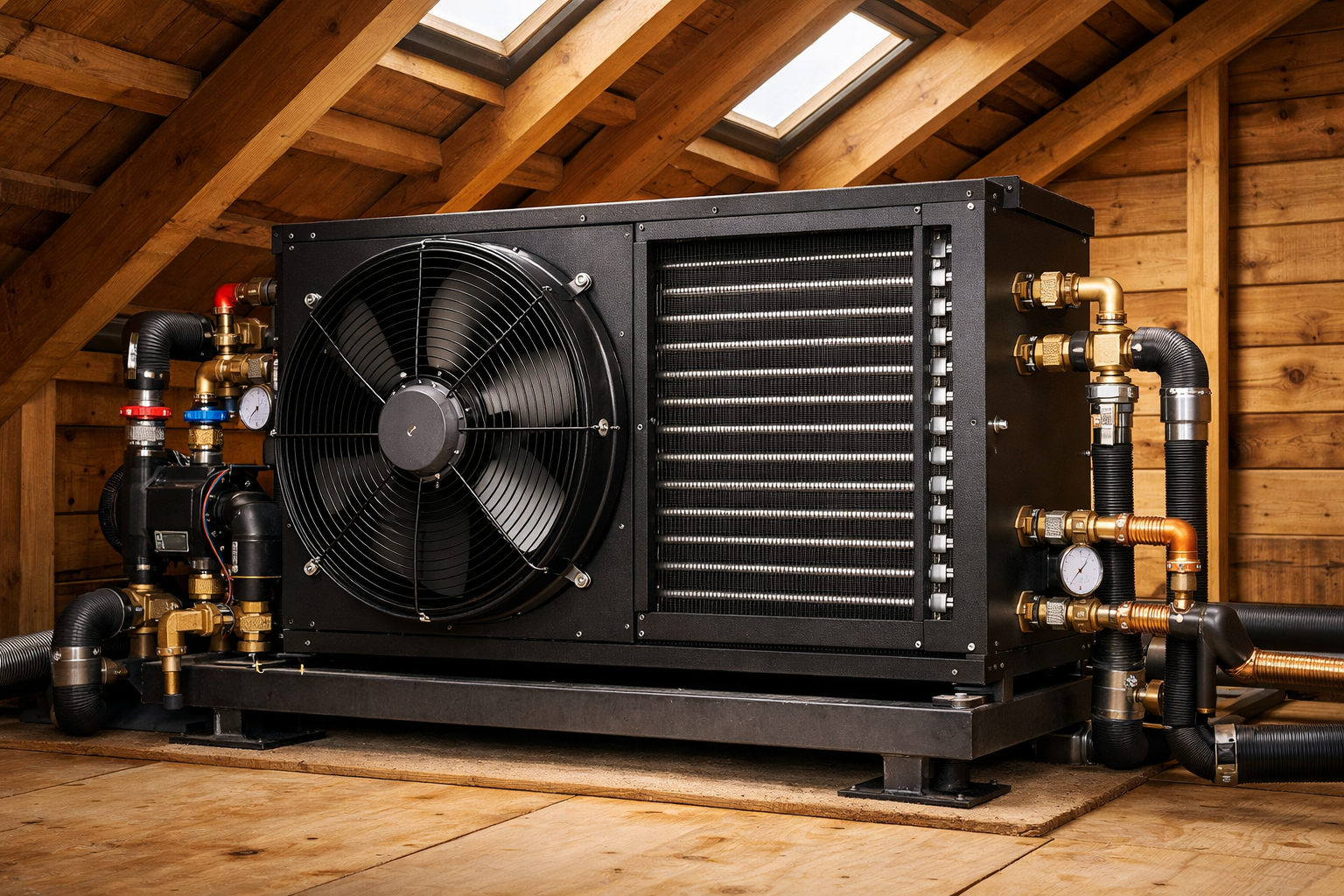

Heat Exchanger Installation
A heat exchanger unit (radiator and fan) is installed in your attic space. This compact system requires no external panels or roof modifications.
Temperature Monitoring
Pool water is automatically diverted to the heat exchanger when attic temperatures are 20°F warmer than the pool temperature.
Heat Transfer Process
The fan draws hot air from across the attic, passing it over the radiator coil. Heat is removed from the attic and transferred to your pool water.
Automatic Safety System
Built-in drain-back system prevents water damage to your attic in the unlikely event of a leak. The system operates automatically with no user intervention.
This effectively turns your entire roof surface into a solar collector without needing any panels.
Key Benefits
Experience the advantages of innovative solar attic pool heating technology
Remarkable Cost Savings
Solar attic pool heaters deliver the most cost-effective pool heating solution on the market, with operating costs averaging just $15 per month or less.
Payback Period
The system pays for itself remarkably fast compared to other heating methods:
- 1 year vs. electric heaters
- 2-3 years vs. natural gas heaters
Technical Specifications
Proven technology with over 30 years of reliable performance
Performance Specifications
- •Nominal BTU Rating: 60,000 BTU/hour @ 32°F
- •Pool Water Input: 72°F, Attic Peak @ 115°F
- •BTU Transfer Range: 20,000 - 150,000 BTU/hour
Physical Specifications
- •Dimensions: 27"H × 17"D × 47"W
- •Weight: 136 lbs (Boxed: 145 lbs)
- •Attic Space Required: 3 ft minimum height to peak
Electrical & Noise
- •Power: 115VAC, 3.6 AMPS @ Full Load (405 Watts Max)
- •Noise Level: Very Quiet
- •dB Ratings: 62 dB A-weighted, 67 dB C-weighted @ 10 feet
Automated Features
- Easy to Use Controls
- Adjustable Thermostat
- Motorized CPVC Solar Valve
- Automatic Control of Solar Valve
- Temperature Sensor Status Indicators
- 3 Year Warranty
System Details
- Model
- STE4
- Generation
- Latest (2026)
- System Investment
- $7,995
- Operating Cost
- ≤ $15/month
Capacity
- Standard Unit
- Up to 35,000 gal
- With Flow Reversal
- Up to 70,000 gal
- Activation Delta
- 20°F
- Season Extension
- Up to 10 months
Installation
- Location
- Inside/Outside Attic
- Roof Panels
- None Required
- Safety System
- Auto Drain-Back
- Operation
- Fully Automatic
Track Record
- First Installed
- 1987
- Years in Service
- 32+ Years
- U.S. States
- 46+
- Countries
- 3
Optional Flow Reversal Valve
The Flow Reversal Valve moves heated water to the bottom of the pool, creating more efficient heat distribution and doubling the system's capacity for larger pools up to 70,000 gallons.
Environmental Impact
Solar attic pool heating represents a truly sustainable approach to pool temperature management, utilizing energy that would otherwise be wasted.
Zero Fossil Fuel Consumption
No gas, oil, or propane needed. The system runs entirely on solar energy already collected by your roof.
Reduces Home Energy Use
By cooling your attic, the system reduces your overall home energy consumption by lowering AC demand.
Dual Environmental Benefit
Heats your pool while cooling your attic—two benefits from one system, maximizing energy efficiency.
Get Your Free Quote
Contact SolarTek Energy today to learn how much you can save with STE4 solar attic pool heating.
